PETROCHEMICAL & MINING

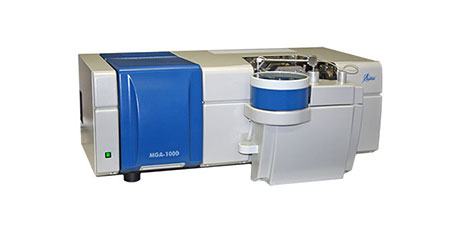

ATOMIC ABSORPTION SPECTROPHOTOMETERS
- Simultaneous measurement of total and background absorptions with Zeeman High Frequency Polarization Modulation (ZHFPM) background correction
- Electrodeless Discharge Lamps (EDL) provide low detection limits and direct As and Se determination at sub-ppb levels without hydride generation technique
- Stabilized temperature platform furnace (STPF) concept is implemented
- Quasi-double beam optics eliminate drifts and enable direct work with no warm-up needed
- Gas-phase dynamic dilution system expands the list of applications – analysis of trace elements as well as major components is possible
- Compact and effective cooling system in the starter-pack
- Cold Vapor/Hydride Generation apparatus is available
- Spectral range: 185 – 900 nm
- Furnace heating rate: up to 4500 K/sec
- Argon flow rate (high purity argon):< 1.5 l/min
- Typical tube lifetime: 800 analysis cycles
- Maximal temperature of the furnace atomizer: 3000 °C
- Autosampler capacity: 47 samples

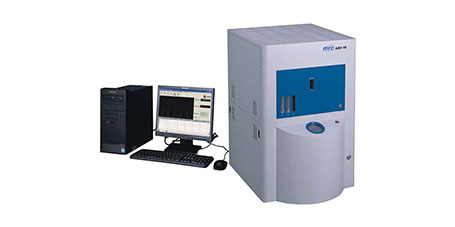

ASH FUSION TESTER
- To determine 4 characteristic temperatures: DT, HT, ST, FT of Coal and coke ash
- Samples no.:5
- Max temp.: 1600deg.C
- Temp. resolution: 1deg.C
- Furnace material: Mullite
- Heating element: Silicon
- Reducing atmosphere: Gas flow method
- Oxidizing atmosphere: air flow method
- Conformance with standards: ASTM D1857-04

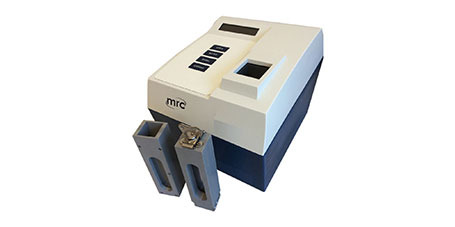

ALCOHOL ANALYZER
- Concave Holographic Grating, Wavelength range: 720-1100nm
- Detector: 38 element silicon diode array
- 1 x Liquid Cell, 20mm path length
- 1 x Powder Cell, 5mm path length
- 1 x Power supply, 110VAC to 12VDC
- 1 x Spare lamp
- 1 x Spare fuse
- 1 x Instruction manual
- Calibrations for: Alcohol in Wine

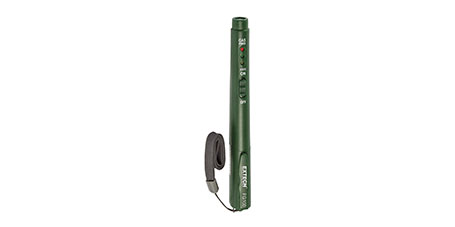

GAS LEAK METERS
- Detects combustible gases - Liquefied Natural Gas (LNG) and
- Liquefied Propane Gas (LPG) from 500 to 6500ppm
- LED indicators for gas leakage and static absorption
- Continuous operation up to 4 hours
- Audible and visual alarm
- Highly sensitive detection circuitry

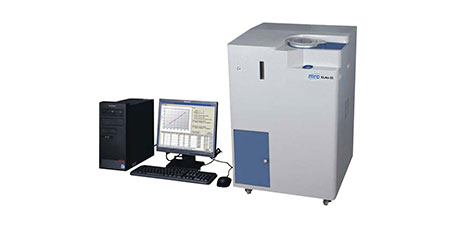

INFRARED CARBON HYDROGEN AND NITROGEN ANALYZER
- Analytical method: infrared absorption, thermal conduction
- Carbon measuring range: 0.02%~100%
- Hydrogen measuring range: 0.02%~50%
- Nitrogen measuring range: 0.008%~100%
- Repeatability: Cad≤0.5%, Had≤0.15%, Nad≤0.08%
- Number of placed samples: 34 samples can be placed consecutively at once.

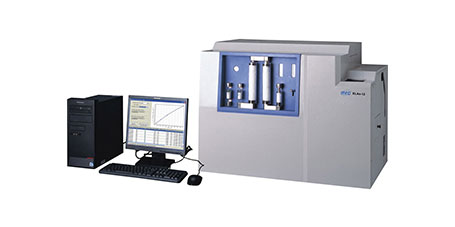

INFRARED SULFUR ANALYZER
- Method Infrared absorption
- Test Range 0,01%-50% (Can be extended to 100% according to customers requires)
- Sample Weight 200-500 mg
- Recommended Weight 300 ± 50 mg
- Analysis Time per Sample ≤ 110s
- Max Sample 12
- Furnace Working Temp. 1350°C
- Gas Requirement Oxygen purity 99.5%
- Conformance with Standards: ISO 19579:2006 Solid mineral fuels Determination of sulfur by IA spectrometry
- ASTM D4239-10 Standard Test Method for Sulfur in the Analysis Sample of Coal and Coke Using High Temperature Tube Furnace Combustion Methods

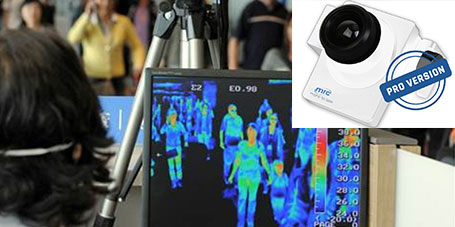

IR-CAM-FEVER
- Package includes: Thermal Camera, OTG Cable, Mini Android Single Board Compute
- Device Attachment: Clip-on for smartphone (5 -10cm span)
- Measurement Settings: Emissivity, Reflected Temperature
- Annotations: Text & Video Annotations
- Output: Video & Audio (H.264), Snapshot (IR, VIS, Metadata)
- Instant Share: Dropbox, Email, SMS
- Android Share Via media gallery
- Color Palettes: Rainbow, Iron, Vivid, Grey, Red Hot, Blue Cold, PSY, Lava, Green
- Temperature Scale Range: Auto, Manual
- Zoom: Continuous digital zoom using touchscreen
- Quick access menu: One touch
- Scan Fever Screening System is a skin temperature measurement system for mass screening of high pedestrian areas such as airports, train stations, factories and other public places

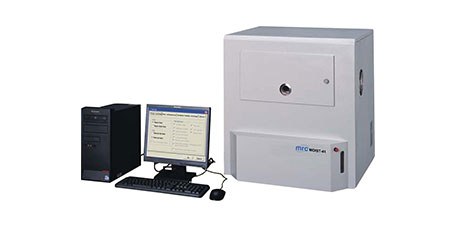

MOISTURE ANALYZER FOR COAL AND COKE
- Max Sample 18 samples (Inherent moisture)
- 9 samples (total moisture)
- Sample Weight (0.9-1.1) g for moisture content on air
- dried basis; (10-12) g for total moisture
- Furnace Temperature 105°C t0 110°C
- Temp. Control Precision ±3°C
- Analysis Time (20-40) min
- ISO117722 Solid mineral fuels Hard Coal Determination of moisture in the general analysis test sample by drying in nitrogen ASTM D5142-09
- Standard Test Method for Proximate Analysis of the Analysis
- Sample of Coal GB/T212-2008 Standard

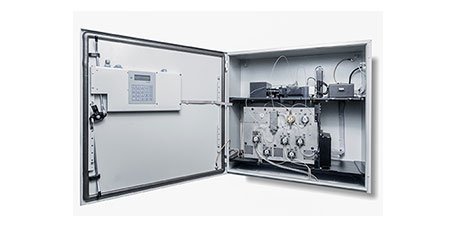

PETROLEUM HYDROCARBON ANALYZER
- Continuous on-line monitoring;
- Digital data processing;
- High measuring rate;
- Low interference from suspended particles;
- Automatic cleaning of the hydraulic system of the analyzer in case of contamination;
- Programmable sample intake rate.
- Measurement range: 0.025 ÷ 20 mg/l
- Measurements per hour: 3
- Sample temperature: 4 ÷ 50 °С
- Sample pressure: 0.1 ÷ 10 bar
- Data output: RS-485 Current loop 4–20 mA
- Signal status outputs: “Alarm”, “Operation”, User-defined

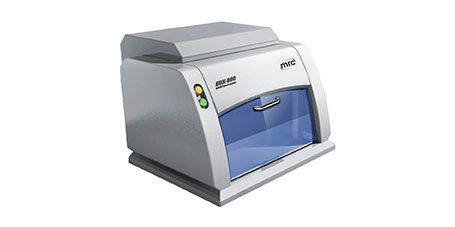

PRECIOUS METAL ANALYZERS
- Application fields: Precious metal testing of jewelleries; Measurement of precious metals and plating, etc.; Fields of X-ray Fluorescence analysis of precious metals.
- Large power X-ray tube
- Super large window proportional counter
- Large sample chamber, easy to operate and test large samples; Multiple gripping styles of samples (universal clamping kits, sample plate, plasticene), offering common tests, inner wall tests and irregular samples tests
- Small collimator is suitable for testing minor area
- Laser and camera positioning can locate testing spot visually and accurately. The laser shuts off automatically when testing starts, helping taking clearer pictures

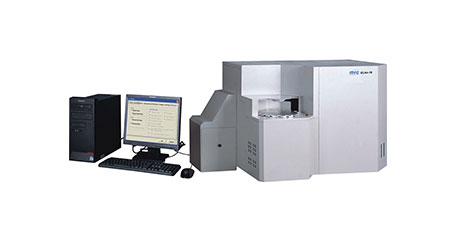

PROXIMATE ANALYZER
- Sample weight:0.5-1.1 g
- Furnace temperature: up to 1000deg.C
- Temperature control precision: +3deg.C moisture
- /+5deg.C ash, volatile matter
- Max smaple:18
- Max power:4.5kW
- Power requirement: 220V 50Hz
- Gas requirement: compressed air
- Dual furnace design for low & high temperature tests
- Windows-based software
- Real-time data transmission via internal network

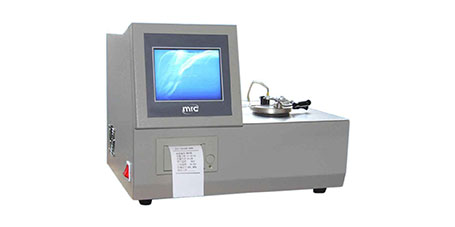

RAPID EQUILIBRIUM CLOSED UP FLASH POINT TESTER
- Temperature controlling: accuracy ±0.5°C
- Igniter: an electron igniter
- Cooling mode: Semiconductor (with cold water cycle at external connection)
- Total power consumption: not more than 300 W
- Ambient temperature: 5~30°Cvvvv
- Relative humidity: 30~80%
- Measurement range 0°C ~ 100°

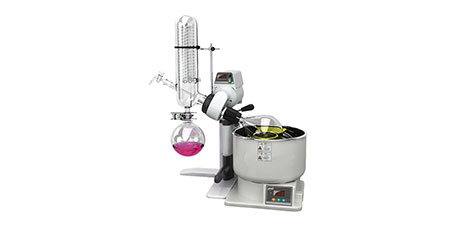

ROTARY EVAPORATORS
- Easy to read large digital LCD screen displays heating temperature, rotation speed and timing
- Speed range from 20 to 280 rpm
- Large 5L water-oil heating bath with heating temperature range of RT to 180°C
- Heating bath with precise temperature control and adjustable safety circuit
- Designed a detachable operating panel allows remote control
- Patented condenser with excellent cooling effect
- Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure
- Adjustable final position recognition to protect operator and sample against breakage
- Evaporating flask with an ejector, convenient to remove
- Available with timer function to precise control processing

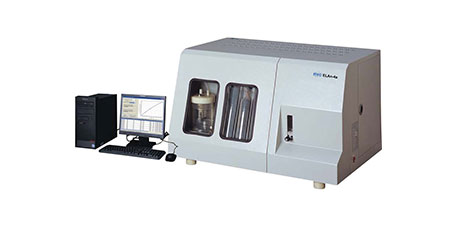

SULFUR ANALYZER
- Super wide uniform temperature zone (90 mm) ensures complete combustion of coal samples.
- Sulfur determination range: 0.01-35%
- Temperature control precision: 3 deg.C
- Sulfur resolution: 0.01%
- Furnace temperature: 1150 deg.C for coal, 900 deg.C for oil
- Sample size: 8-110 mg
- Analysis time: 3-6 min/samples
- Number of samples: 1

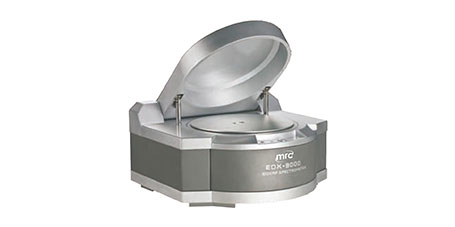

XRF SPECTROPHOTOMETER
- The most advanced detection technology: Silicon Drift Detector(SDD), with resolution as low as 125eV;
- The most advanced digital multichannel technology effectively improves output efficiency, realizes ultrahigh count rate, and guarantees the maximum effective counting rate reaches 30 kcps; Large power X ray tube and sophisticated collimation filter system provide higher excitation efficiency;
- Optical shutter system. no need to close high voltage when replacing sample; improves test efficiency and accuracy
- 2D movable sample platform – supports image coordinated control and multi-point continuous test
- Tiny sample detection – minimum 0.2mm
