FOOD & BEVERAGE

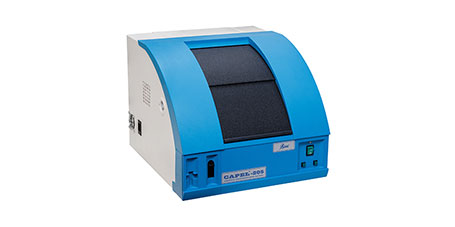

CAPILLARY ELECTROPHORESIS SYSTEMS
- Extended autosampler capacity up to 59 positions, allowing to provide overnight analyses
- Standard centrifuge-type vials of 1.5mL volume (Eppendorf-type) closed with their original caps are used for all solutions
- Specially designed unit automatically opens vials just prior to their use, thus preventing evaporation and any kinds of cross-contamination
- New HV block provides voltage up to +/- 30 kV thus improving separation efficiency and decreasing analysis timeNew HV block provides voltage up to +/- 30 kV thus improving separation efficiency and decreasing analysis timeNew HV block provides voltage up to +/- 30 kV thus improving separation efficiency and decreasing analysis time
- Optionally – integrated unit to control the state of the inner capillary surface provides significantly improved migration time reproducibility especially when analyzing samples with complex matrices
- Detector: Spectrophotometer 190-400 nm
- Sampler: Autosamplers for 59 vials (standard Eppendorf-type 1.5 mL)
- Rinsing: By pressure, 500–2000 mbar in 1 mbar steps
- Capillary: Length: 30–120 cm ;Internal diameter: 50, 75 μm

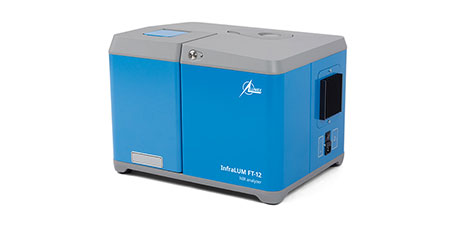

FTNIR ANALYZER
- Rapid analysis of quality parameters of cereals (determination of protein, moisture, gluten content, and other parameters) of wheat, barley, corn, and grain products etc.;
- monitoring of flour quality at various stages of the milling process;
- determination of oil content, moisture and other quality parameters of interest in oilseeds;
- processed products, quality control of compound feed production.
- Measuring time :80 sec
- Sample volume: 50 ml
- Spectral range: 13200–8700 сm-1 (760–1150 nm)

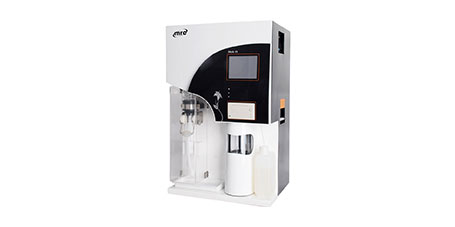

KJELDAHL AUTO ANALYZER
- Auto Kjeldahl method Analyzer for nitrogen determination
- Automatic integrating distillation and titration functions, calculation and printing
- Automatic waste discharge and cleaning of boiling tubes and titration cups.
- Control steam supply real-Time detection of condensation temperature.
- High sensibility colour sensing unit ensures accurate final point determination

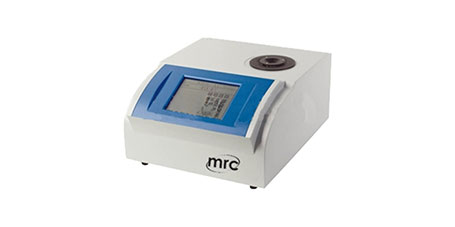

MELTING POINT APPARATUS
- Melting-point measurement range: room temperature -400°C
- Setting rate of the “starting temp.”: 50°C~400°C ≤5 min; 400°C~50°C ≤7 min
- Minimum digital display: 0.1°C
- Size of the capillary: φ1.4mm (outside diameter), φ1.0mm (inside diameter), 90mm
- Number of capillary: 1
- Loading height of the sample: 3mm-5mm
- Data storage: 1000 set
- Linear heating-up rate: 0.1°C ~ 20°C /min
- Accuracy: ≤200°C: ±0.4°C, >200°C-320°C: ±0.7°C
- Repeatability: 0.3°C

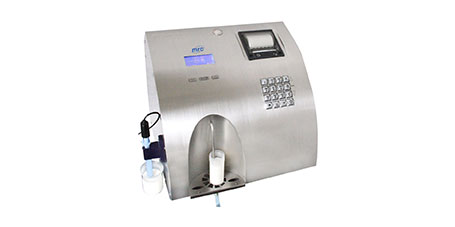

MILK ANALYZER
- Embedded printer
- Embedded keypad
- Integrated weight scales
- Additional serial printer
- Matrix printer (optional)
- External keypad (optional)
- Peristaltic pump – automatic cleaning pipe pH probe holder
- Possibility of using different sample holders
- Integrated pH and conductivity measuring
- Self-calibration without computer

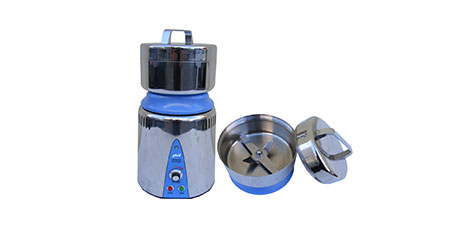

SAMPLE MILLS
- Sample laboratory Mill with separated grind container
- For dry materials
- Speed range: up to 30,000 rpm
- Cup dimension: diameter 132mm, high 57mm
- Maximum Capacity 700ml
- Max. grinding recommended 200ml
- Dimensions: 220dia.x300h,8kg
- The hardness of the blades is HRC55 degrees and its material is SUS420

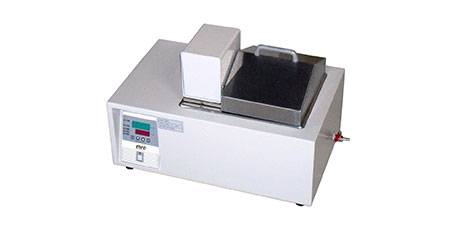

OIL BATHS
- Digital 7 litre circulating oil bath
- Temperature range: up to 200 deg C
- Digital temperature controller +-0.1 deg C
- Includes hood with oil drain
- Digital temperature setting & readout
- Heater 1200W
- Stainless steel bath and lid

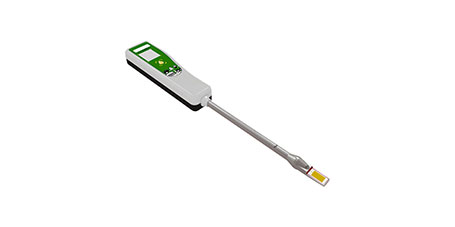

OIL QUALITY METERS
- Temperature measure range 10.0 ~ 200°c ( 50-392°F)
- Temperature resolution ± 0.1°C
- Temperature accuracy ± 1.0°C
- TPM measure range 0.5 ~ 40%
- TPM accuracy ±2%TPM accuracy ±2%
- TPM resolution ±0.1%
- Temperature sensor PTC Sensor
- TPM sensor Capacitive sensor
- TPM response time <15S
- LED status alert Green, Orange, Red

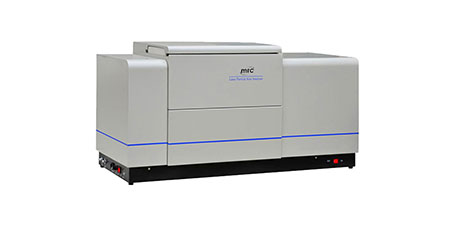

PARTICLE ANALYZERS
- PA-200J/K are intelligent full automatic model which is integrated model of wet and dry dispersion system.
- It’s the prior choice for industrial production quality control departments and research institutions which have more types of particles and wide particle size distribution.
- Size Range: Dry:0.1-2000 micron
- Wet:0.01-2000 micron
- Standard: ISO 13320-1:1999；GB/T19077.1-2308；Q/0100JWN001-2013
- Channels Number: Dry:100 Wet:127

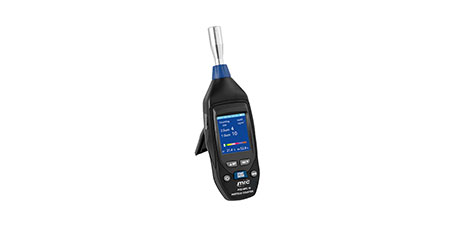

PARTICLES METERS
- Particle sizes (in micrometers) 2.5 µm, 10 µm
- Particle concentrations 0 ... 2000 μg / m³
- Resolution 1 μg / m³
- Temp. measuring range 0 ... +50°C / +32 ... +122°F
- Accuracy ± 1°C, Resolution 0.1°C
- Humidity measuring range 0 ... 100 % RH
- Accuracy ± 3.5 % RH (20 ... 80 % RH)
- ± 5 % RH (0 ... 20 % RH / 80 ... 100 % RH)
- Resolution 0.1 % RH

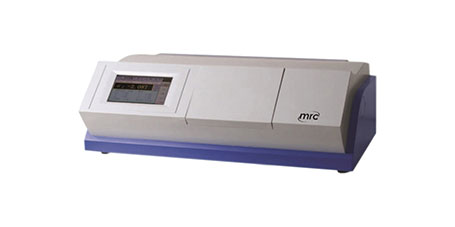

POLARIMETERS
- Light source: LED
- Measurement range: ±89° (optical rotation) ±257°Z (sugar)
- Working wavelength: 589.3nm
- Temperature control range: 15-30°C
- Measurement mode: Optical rotation, specific rotation, sugar degree, concentration
- Display: 7 inch colour touch screen
- Data storage: 1500 sets

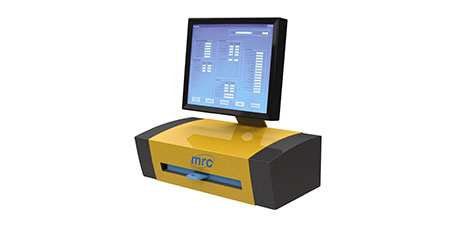

SEED COUNTERS METERS
- Image Analyzer for Grains and Seeds
- NIR-SC-5000 is digital imaging systems specifically designed for food and agriculture industries.
- See Count Features: *Analyse up to 1000 seeds in less than 30 secs *Measures physical dimensions, colour and colour defects, broken and cracked grains as well as grain specific parameters *Customise the data screen *Display graphs and plots *Individual seed analysis reported *Data is stored along with image

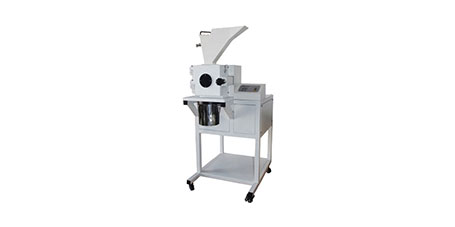

CONTINUOUS CUTTING MILLS
- Used by Laboratories & Processing
- Companies to granulate solid materials such as waste of wood and thermoplastics
- Massive grinding chamber made from vibration reducing components
- Solid door with safety switch for easy access and cleaning
- 500-3000 rpm
- Motor Power:3000watt
- Final product size: 250µm
- Number of rotor knives-3
- Number of stator knives-4

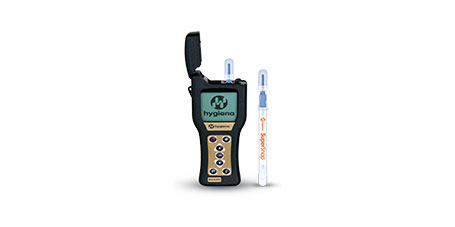

LUMINOMETERS
- Easy-to-use & intuitive – no training required
- Web-based platform – no software downloads needed
- Unite multiple types of food safety data in one place
- Invite colleagues and assign roles to increase collaboration, accountability, and organizational buy-in and provide greater visibility into food safety program
- Interactive dashboard gives a birds-eye-view of overall testing performance
- Ready to use reports save time, custom reports add extra detail & personalization
- New capabilities added regularly via seamless and automatic software updates – no need to call IT
- Unlimited data and storage – no annual fees or start-up costs
- Easily manage one or hundreds of instruments from one account
- Track re-tests to discover opportunities for retraining or identify equipment that may need replacing
Get in touch
For full detailed information about our products, please contact us
